# Create image from bearings and ranges

I am trying to convert a list of bearings and ranges to an image.

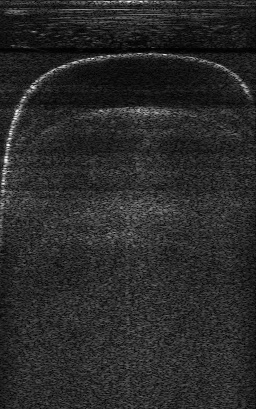

I basically have an image:

with rows corresponding to range (~0 to ~400cm) and column to bearings (~-65 to ~65deg).
I am already able to manually convert it to

but there is a lot of gaps between the measurement. I have tried to use OpenCV methods like polarWarp but have not been able to obtain a satisfying result.

seems the second figure was not posted, here it is:

`warpPolar` is the correct function to transform this.

please provide a Minimal Reproducible Example (including data) so we can investigate any issues. is the first picture suitable data?

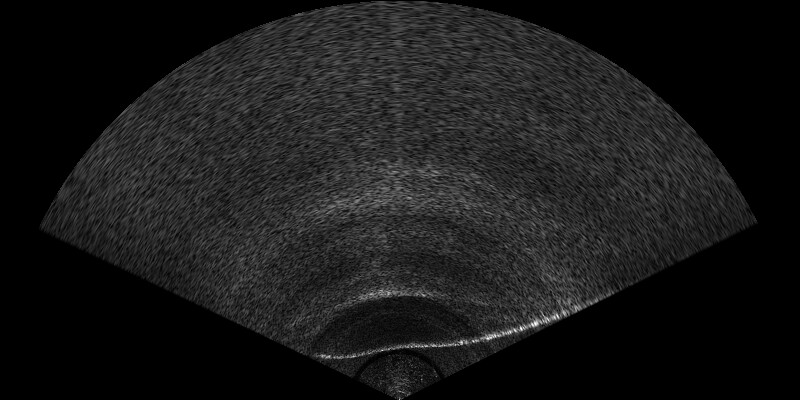

I only needed to zero-pad the input to have a full circle of data…

if you need more precise control over the mapping, of course you can always calculate an index map yourself and then use `remap()`

yes, the first picture is good. How did you achieve this result? Is this zero pad operation time consuming?

`copyMakeBorder`, costs one copy. the downside is that this can only add whole pixels worth of data, so if you need perfect accuracy in fractions of a degree, you’d need to spend a little thought on everything.

if you’re looking for maximum speed, or need to control the math fairly precisely (by pixels/subpixel), you’d want to compare that against a custom xymap suitable for `remap()`. warpPolar might be using the special case math (vs. remap) to its advantage… or maybe precomputing the map makes it cheaper.

Could you share how you did it? I cannot manage to do it

you say the data is -65 to +65 degrees, so that is 130 degrees, and that is 256 pixels, right?

now calculate how many pixels would be 360 degrees. that’s `256 / 130 * 360`

that is the size you need to pad to. the arguments to `copyMakeBorder` are derived from those values.

then you would use `rotate()` to rotate the picture. the top edge, representing the center of the polar image, needs to go to the left because that’s the orientation required by `warpPolar`.

then you just give `warpPolar` some sensible arguments.

if you have problems with specific code, I’ll take a look.

I am doing this

``````total_pix = int(((256 / 130 * 360)-256)/2)
source = cv2.rotate(source, cv2.ROTATE_90_COUNTERCLOCKWISE)
source = cv2.copyMakeBorder(source, total_pix, total_pix, 0, 0, cv2.BORDER_CONSTANT)
source = cv2.warpPolar(source, (409,800), (source.shape[0]/2, 0), 409, cv2.INTER_LINEAR | cv2.WARP_FILL_OUTLIERS)
``````

but does not result in anything good

you missed `WARP_INVERSE_MAP`

the warp can go both ways.

that’s bad. put the center further down. it’s at the top now. put it at half height. also, the order is (x,y), and source.shape[0] (height, ~709) has no meaning in the output. the output is purely shaped according to radius.
