CUDA GFTT Detect forces huge CPU alloc/free

C++
1

Hi,
I’ve been using cv::cuda::createGoodFeaturesToTrackDetector and I found a pretty weird behaviour memory-wise.

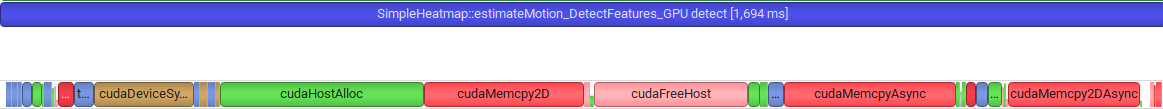

I profiled the GFTT form cuda tracing NVTX ranges and cuda calls.

Screenshot 2025-10-02 164703
Screenshot 2025-10-02 1647031163×109 9.32 KB

The issues I saw were :

  • Detect function is running some (and not for all) GPU operations on the default cuda stream, even though the detect function is being passed a non-default stream.
  • Detect function will do some very slow CPU allocations/copies/frees.

So to understand that, I took a look at the cuda GFTT implementation from which I removed a verbose loop at the end:

void GoodFeaturesToTrackDetector::detect(InputArray _image, OutputArray _corners, InputArray _mask, Stream& stream)
    {
        using namespace cv::cuda::device::gfft;

        GpuMat image = _image.getGpuMat();
        GpuMat mask = _mask.getGpuMat();

        CV_Assert( mask.empty() || (mask.type() == CV_8UC1 && mask.size() == image.size()) );

        ensureSizeIsEnough(image.size(), CV_32FC1, eig_);
        cornerCriteria_->compute(image, eig_, stream);

        double maxVal = 0;
        cuda::minMax(eig_, 0, &maxVal);
        cudaStream_t stream_ = StreamAccessor::getStream(stream);
        ensureSizeIsEnough(1, std::max(1000, static_cast<int>(image.size().area() * 0.05)), CV_32FC2, tmpCorners_);

        int total = findCorners_gpu(eig_, static_cast<float>(maxVal * qualityLevel_), mask, tmpCorners_.ptr<float2>(), tmpCorners_.cols, stream_);

        if (total == 0)
        {
            _corners.release();
            return;
        }

        sortCorners_gpu(eig_, tmpCorners_.ptr<float2>(), total, stream_);
... (CPU code not relevant to my issue)
}

It then becomes clear why one operation is ran on the defaulft cuda stream → cuda::minMax does not allow to be used with a custom cuda stream. But cuda::minMax also outputs 2 doubles and does not let you use GpuMat as output so it forces CPU host allocation/copy/free.

cuda::minMax is using cuda::findMinMax under the hood that accepts a custom stream and can be used with GpuMats as output.

void cv::cuda::findMinMax(InputArray _src, OutputArray _dst, InputArray _mask, Stream& stream)
{
    typedef void (*func_t)(const GpuMat& _src, const GpuMat& mask, GpuMat& _dst, Stream& stream);
    static const func_t funcs[] =
    {
        minMaxImpl<uchar, int>,
        minMaxImpl<schar, int>,
        minMaxImpl<ushort, int>,
        minMaxImpl<short, int>,
        minMaxImpl<int, int>,
        minMaxImpl<float, float>,
        minMaxImpl<double, double>
    };

    const GpuMat src = getInputMat(_src, stream);
    const GpuMat mask = getInputMat(_mask, stream);

    CV_Assert( src.channels() == 1 );
    CV_Assert( mask.empty() || (mask.size() == src.size() && mask.type() == CV_8U) );

    const int src_depth = src.depth();
    const int dst_depth = src_depth < CV_32F ? CV_32S : src_depth;

    GpuMat dst = getOutputMat(_dst, 1, 2, dst_depth, stream);

    const func_t func = funcs[src.depth()];
    func(src, mask, dst, stream);

    syncOutput(dst, _dst, stream);
}

void cv::cuda::minMax(InputArray _src, double* minVal, double* maxVal, InputArray _mask)
{
    Stream& stream = Stream::Null();

    HostMem dst;
    findMinMax(_src, dst, _mask, stream);

    stream.waitForCompletion();

    double vals[2];
    dst.createMatHeader().convertTo(Mat(1, 2, CV_64FC1, &vals[0]), CV_64F);

    if (minVal)
        *minVal = vals[0];

    if (maxVal)
        *maxVal = vals[1];
}

My question is then : Is there a reason to not use cuda::findMinMax that I’m completely missing?
And a follow up : Open Source is new to me but, is this a good Github issue to open on OpenCV repository?

My specs :

  • GPU : RTX 4060
  • CUDA version : 12.6
  • OpenCV version : 4.11.0
2

I think there might be. I haven’t looked at the code in the repo but from what you have posted

int total = findCorners_gpu(eig_, static_cast<float>(maxVal * qualityLevel_), mask, tmpCorners_.ptr<float2>(), tmpCorners_.cols, stream_);

findCorners_gpu requires maxVal which is probably an internal launch parameter dictating the number of iterations or something similar (read CPU control code) of some optimization routine. If this was calculated on the GPU then it would still have to be downloaded for the CPU to use it so there would be no advange to using findMinMax. If what I’ve said is wrong then please let me know and I will investigate properly.

If this is an issue I would incourage you to raise it on OpenCV and submit a PR to fix it.

1 Like
3

I agree on the fact that if we use this findCorners_gpu function, it would require the max value to be on CPU to be able to call it.
But using findMinMax would allow us to cache the cpu memory on the GFTT object and avoid the cudaHostAlloc and cudaFreeAlloc every call to detect. It would also allow us to run on the non default stream and avoid to force gpu synchronization.
We would still have to copy the memory back to cpu though.

To go a bit further, I’m sure it would be pretty doable to use the findMinMax function, get the max value in a GpuMat, and directly pass that to a slightly modified version of findCorners_gpu that accepts a max value already on gpu.
We would then be able to avoid completely this memory transfer.

I will try both options and keep you updated!
Thanks for the answer.

4

It looks like my guess was wrong and the value is not used on the host. You should be able to pass maxVal and qualityLevel directly to findCorners instead of threshold.
